HEARTWORKS - Echocardiography and cardiac anatomy simulator

Patient simulator
Anatomy
Product family
Medicine

Cardiac anatomy and echocardiography simulator covering transthoracic, transoesophageal and 3D, developed by cardiac anaesthetists.

Price on request

Available in Spain, Portugal and Andorra · delivery time given in the proposal

Download data sheet

Downloadable data sheet — features, specifications and delivery time, in PDF.

Need a technical report? Ask us for it and we'll send it within 24 h →

Catalogue

Description

What this equipment is and what it's designed for.

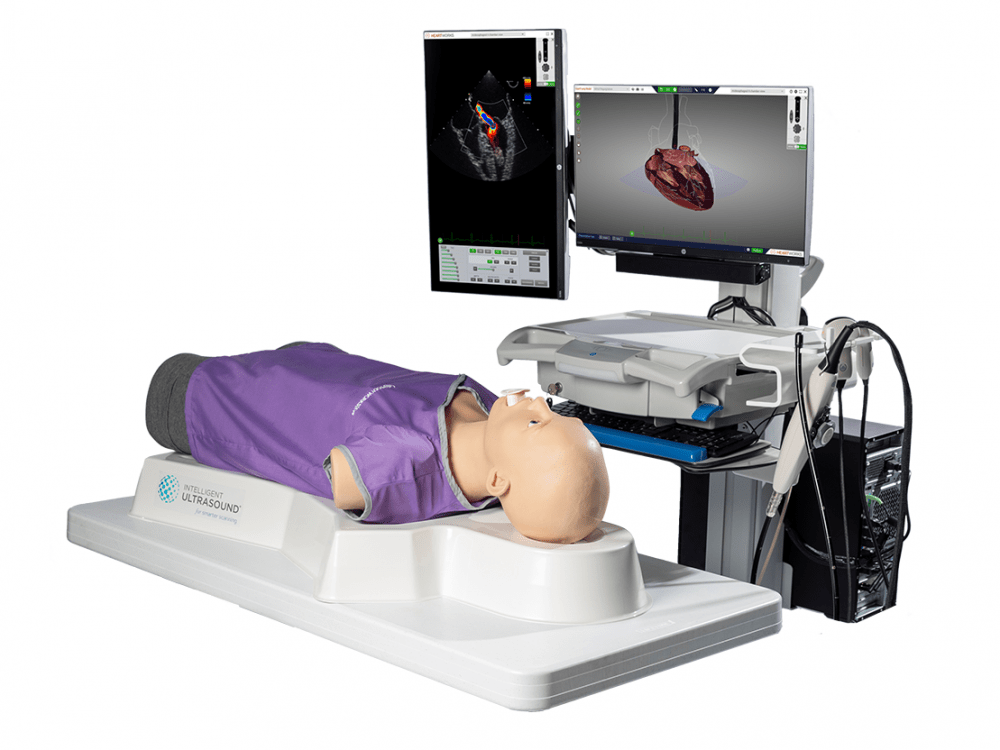

HeartWorks teaches two things at once that are normally learnt separately: the anatomy of the heart and how to image it. The trainee moves the probe and sees, alongside the ultrasound sector, the heart in three dimensions cut by that same plane. Understanding why a view looks the way it does stops being an exercise in memory.

It covers the whole pathway: transthoracic over palpable landmarks, transoesophageal with real controls for anteflexion, retroflexion, lateral flexion and omniplane rotation, and 3D echocardiography as an add-on.

It comes with 30 patient cases — normal heart and lungs, various diseased states and the main cardiac devices — all of which can be interrogated with colour, pulsed and continuous wave Doppler.

Knowledge

What you learn

Patient simulator modality. The competencies this equipment trains, in the language of the training plan.

Three-dimensional cardiac anatomy and how it maps onto the ultrasound plane.
Transthoracic echocardiography: systematic acquisition of the 20 standard views.
Transoesophageal echocardiography: probe handling and the 28 views.
Assessment with colour, pulsed and continuous wave Doppler.
Recognition of valvular and functional pathology and of implanted devices.
Principles of 3D echocardiography.

Knowledge

Cases and pathologies

The clinical scenarios that can be simulated with this equipment.

30 cases covering the normal heart and lungs, various diseased states and the cardiac devices in routine use. All can be interrogated with colour, pulsed and continuous wave Doppler, and seen at the same time on the three-dimensional model.

Catalogue

Features and what's included

What the equipment does and what comes in the box, as described by the manufacturer.

Features

3D cardiac anatomy synchronised with the ultrasound plane in real time.
30 patient cases: normal heart and lungs, diseased states and cardiac devices.
20 transthoracic and 28 transoesophageal best-practice imaging views.
Colour, pulsed wave and continuous wave Doppler across all cases.
Transoesophageal probe with anteflexion, retroflexion, lateral flexion and omniplane rotation.
Palpable anatomical landmarks for the transthoracic examination.
Learning pathway configurable by the tutor, with custom presentations.
Real-time 3D echocardiography add-on.

Catalogue

Configurations

The same simulator, in the combinations it is supplied in. The computer, the probes and the modules that come inside are what change.

HEARTWORKS - HeartWorks TTE with laptop + monitor Transthoracic echocardiography (TTE probe) · Laptop and one additional monitor

01661
HEARTWORKS - HeartWorks TEE with laptop + monitor Transoesophageal echocardiography (TEE probe) · Laptop and one additional monitor

01662
HEARTWORKS AR - Cardiac anatomy and ultrasound Augmented reality application on top of the HeartWorks simulator · Cardiac anatomy overlaid on the ultrasound plane in space

01882
HEARTWORKS - HeartWorks TTE with desktop computer + monitor Transthoracic echocardiography (TTE probe) · Desktop computer and one monitor

03777
HEARTWORKS - HeartWorks TEE with desktop computer + monitor Transoesophageal echocardiography (TEE probe) · Desktop computer and one monitor

03779
Heartworks dual - TTE and TEE ultrasound Transthoracic and transoesophageal echocardiography, both probes

01503
HEARTWORKS - Dual TTE/TEE with desktop + 2 screens Dual TTE/TEE configuration of the HEARTWORKS echocardiography simulator, with desktop computer and two monitors.

13825
HEARTWORKS - Dual TTE/TEE with laptop + screen Dual TTE/TEE configuration of the HEARTWORKS echocardiography simulator, with laptop and monitor.

13826

Catalogue

Modules

They extend what this equipment teaches. They are requested separately and are not included in the quotation by default.

HEARTWORKS START - Student Assessment & Review Tool

03783
HEARTWORKS - TEE or TTE module (choose 1 probe) for BODYWORKS EVE
Adds HeartWorks echocardiography to the BODYWORKS EVE simulator: transoesophageal (TEE) or transthoracic (TTE), with one probe of your choice.

03773
BODYWORKS - PoCUS module with abdominal probe for HEARTWORKS TTE and/or TEE
Adds BodyWorks point-of-care ultrasound (PoCUS), with an abdominal probe, to a HEARTWORKS TTE and/or TEE simulator.

03778

Catalogue

Options

They extend this equipment. They are requested separately and are not included in the quotation by default.

HEARTWORKS - Trolley for ultrasound scanner (1 Screen) Ultrasound trolley for the HEARTWORKS simulator, with 1 screen.

04388
HEARTWORKS - TTE upgrade for an existing BodyWorks PoCUS simulator TTE upgrade for the HEARTWORKS echocardiography simulator, for installation on a BodyWorks PoCUS simulator.

13827
HEARTWORKS START - Student Assessment & Review Tool

03783
