ENDOSIM - Base platform

Reference 14537 · Patient simulator

ENDOSIM - Base platform

This is a configuration of ENDOSIM - Endoscopy simulator

Patient simulator
Gastroenterology
Configuration
Medicine

ENDOSIM base platform with the basic skills, gastroscopy and colonoscopy modules included.

Price on request

Available in Spain, Portugal and Andorra · delivery time given in the proposal

Download data sheet

Downloadable data sheet — features, specifications and delivery time, in PDF.

Need a technical report? Ask us for it and we'll send it within 24 h →

Catalogue

Description

What this equipment is and what it's designed for.

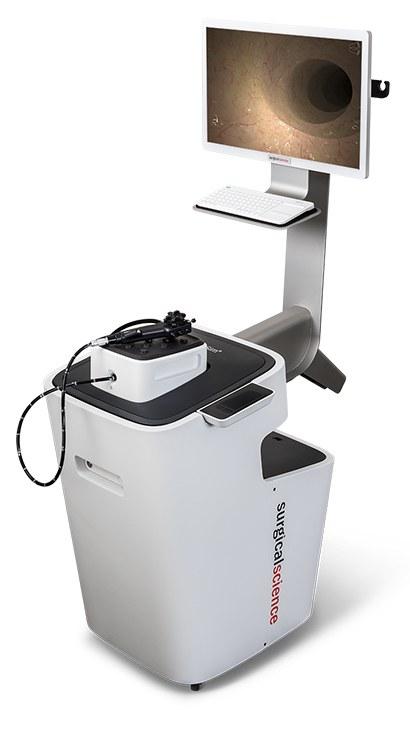

The ENDOSIM base platform is a haptic flexible endoscopy simulator with force feedback on scope insertion and rotation. The haptic unit detaches and works as a desktop unit, and all necessary computer and monitor hardware is included.

This configuration includes the basic skills, gastroscopy and colonoscopy modules: from scope handling, navigation and retroflexion to upper GI examination with ESGE photo documentation and colonoscopy to the caecum while avoiding loops.

Every exercise is recorded with detailed metrics, and the administration mode supports course planning, trainee follow-up and exercise configuration. The platform can be expanded with additional modules, such as ERCP and bronchoscopy.

Knowledge

What you learn

Patient simulator modality. The competencies this equipment trains, in the language of the training plan.

Handle the flexible endoscope: insertion, rotation, buttons and angulation knobs.
Navigate the upper GI tract to the duodenum and the colon to the caecum.
Avoid and reduce loops during colonoscopy.
Carry out a systematic mucosal examination, including retroflexion.
Document the upper GI examination by photographing the eight ESGE-defined locations.
Target specific sites with the scope and take biopsies.
Practise repeatedly at increasing levels of difficulty before the first patient contact.

Related procedures: Airway management · Endoscopy · Fiberbronchoscopy · Fluoroscopy · Hysteroscopy

Knowledge

Cases and pathologies

The clinical scenarios that can be simulated with this equipment.

FUNDAMENTAL ENDOSCOPIC SKILLS:

Scope, button and knob handling
Navigation
Mucosal examination
Targeting
Retroflexion
Loop reduction

UPPER GI: GASTROSCOPY:

Intubation and navigation to the duodenum and back
Mucosal examination
ESGE photo documentation: upper oesophagus, 2 cm above the Z line, cardia in inversion, upper greater curvature, angulus in partial inversion, antrum, duodenal bulb and second part of the duodenum
Biopsy sampling

LOWER GI: COLONOSCOPY:

Intubation to the caecum while avoiding loop formation
Colon visualisation
Cases at different difficulty levels

Expandable with the modules

ERCP:

Bile duct cannulation
Split screen with simultaneous endoscopic and fluoroscopic views

BRONCHOSCOPY:

Full airway examination and segment targeting
Cytology brushing and bronchoalveolar lavage (BAL)
Foreign body removal

ENDOSCOPIC ULTRASOUND:

EUS-B/EUS module

Catalogue

Features and what's included

What the equipment does and what comes in the box, as described by the manufacturer.

Features

HAPTIC PLATFORM:

Platform with force feedback on scope insertion and rotation.
The haptic unit detaches and works as a desktop unit for easier transport and use.
All necessary computer and monitor hardware included.

ENDOSCOPES:

Scopes with full insertion length tubes and a tool channel.
Active channel for biopsy forceps, polypectomy snare and injector.

REALISTIC SIMULATION:

True-to-life physiological responses and tool behaviour.
Realistic tube simulation, anatomical detail and tactile feedback.

ESGE PHOTO DOCUMENTATION:

Complete upper GI examination by photographing the eight anatomical locations defined in the ESGE image documentation guidelines.
Guided photo positioning; target locations can be selected or deselected and photographed in any order.
Included in two default courses.

METRICS AND ASSESSMENT:

Every exercise is recorded with detailed metrics and statistics.
Immediate feedback and long-term tracking of skill development.

ADMINISTRATION MODE:

Course planning, trainee follow-up and exercise configuration.
Pre-loaded courses and customisable exercises, scenarios and complications.

Includes

ENDOSIM haptic platform with detachable desktop unit
Gastroscopy and colonoscopy scopes with tool channel
Computer and monitor
Basic skills, gastroscopy and colonoscopy modules
Administration mode and pre-loaded courses

Catalogue

Modules

They extend what this equipment teaches. They are requested separately and are not included in the quotation by default.

ENDOSIM - ERCP Module
ERCP module for the ENDOSIM simulator.

14541
ENDOSIM - Bronchoscopy Module
Bronchoscopy module for the ENDOSIM simulator.

14542
ENDOSIM - EUS-B/EUS Module
EUS-B/EUS module for the ENDOSIM simulator.

14543
