Reference 03705 · Task trainer
Adult torso phantom for X-ray and CT
- Task trainer
- Radiology
- Main product
- Medicine

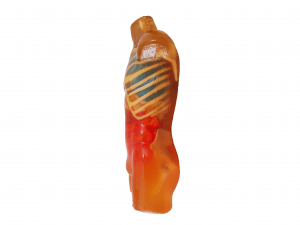

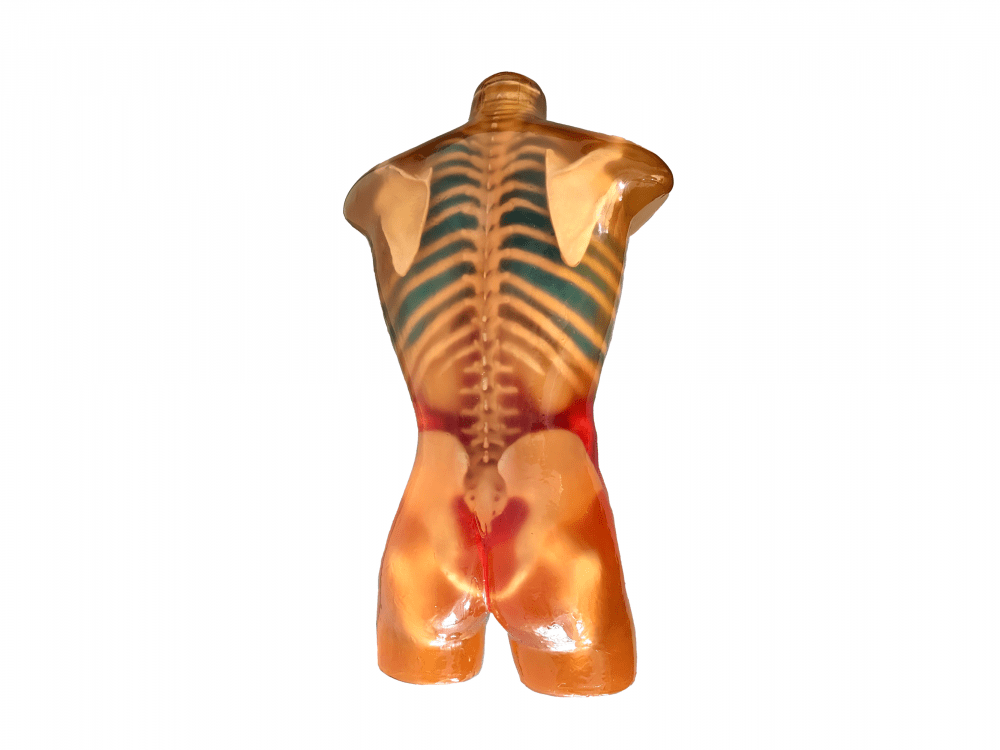

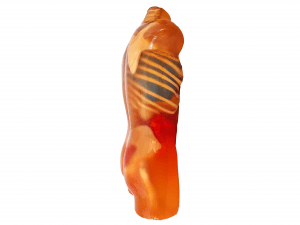

The Adult Male Torso phantom is based on an average human anatomy. The bones installed inside this Torso are made out of realistic patented bone material that is suitable for X-Ray/CT & MRI applications. It can be used for diagnostic imaging research and training.
Price on request
Available in Spain, Portugal and Andorra · delivery time given in the proposal
Downloadable data sheet — features, specifications and delivery time, in PDF.
Need a technical report? Ask us for it and we'll send it within 24 h →
Description
What this equipment is and what it's designed for.
This phantom is designed based on average human anatomy and is made out of realistic bone and soft tissue-mimicking materials that are suitable for X-Ray/CT and MRI applications. It can be used for medical imaging research and radiology training and can also be served as a customized tool for equipment testing and calibration.
The skeleton is made from individually cast bones from a realistic patented epoxy – based composite material with vertebrae that have a realistic three-layered structure with inner porosity.
The Lungs installed inside this Torso can be customized in several ways to simulate any pathology, such as mucus, lesions, and typical infections. This phantom can also be customized as a training simulator to train medical students on COVID-19-related diagnostic procedures.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
Upon request, this phantom can also be customized in size & shape (i.e., based on the individual’s CT scan).
Product IMages Product Images (Internal) Product Designs Videos
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
What you learn
Task trainer modality. The competencies this equipment trains, in the language of the training plan.
- Position and collimate for the radiographic projections of the torso.
- Adjust the acquisition parameters in radiography and CT.
- Correlate the radiograph with the CT slice of the same region.
- Verify image quality without exposing people.
Related procedures: Tomography · X-ray
Cases and pathologies
The clinical scenarios that can be simulated with this equipment.
- Training of diagnostic radiography staff in X-ray and CT.
- Quality control of units and protocols.
- Study of normal torso anatomy in two modalities.
Features and what's included
What the equipment does and what comes in the box, as described by the manufacturer.
Features
- Adult torso phantom for X-ray and computed tomography.
- It allows the same region to be compared across two imaging modalities.
- Stable reference object, suitable for repeating the acquisition without risk.
Includes
- User Manual/Assembly Instructions
- 2-Year Warranty & Unlimited Customer Service
- Size: 34 x 18 x 10 Inches
- Weight: 88 Lbs (approx.)
- Weight: 142 Lbs (approx.)
Services for this equipment
Services matter: the equipment gets commissioned, the staff know how to use it and maintenance is settled before you start. Include them in your budget and avoid having to raise a second purchase.
- Preventive maintenance We'll let you know when it's due
Documentation
You can download it now or we'll send it on request.
Other related equipment
They train the same technique. Each one approaches it in its own way: none of them replaces this one.
Is this equipment going into a new centre?
If you're equipping a classroom or a whole centre, starting from the shopping list works out expensive. Start from the needs assessment.
