Smart Sensor CPR & ALS Simulator - Smart TruALS Adult

Reference 12312 · Patient simulator

Smart Sensor CPR & ALS Simulator - Smart TruALS Adult

  • Patient simulator
  • Cardiology
  • Main product
  • Medicine

Full-body ALS/ACLS simulator with integrated smart sensor technology and real-time feedback via the SmartRESUS app.

Price on request

Available in Spain, Portugal and Andorra · delivery time given in the proposal

Download data sheet

Downloadable data sheet — features, specifications and delivery time, in PDF.

Need a technical report? Ask us for it and we'll send it within 24 h →

Catalogue

Description

What this equipment is and what it's designed for.

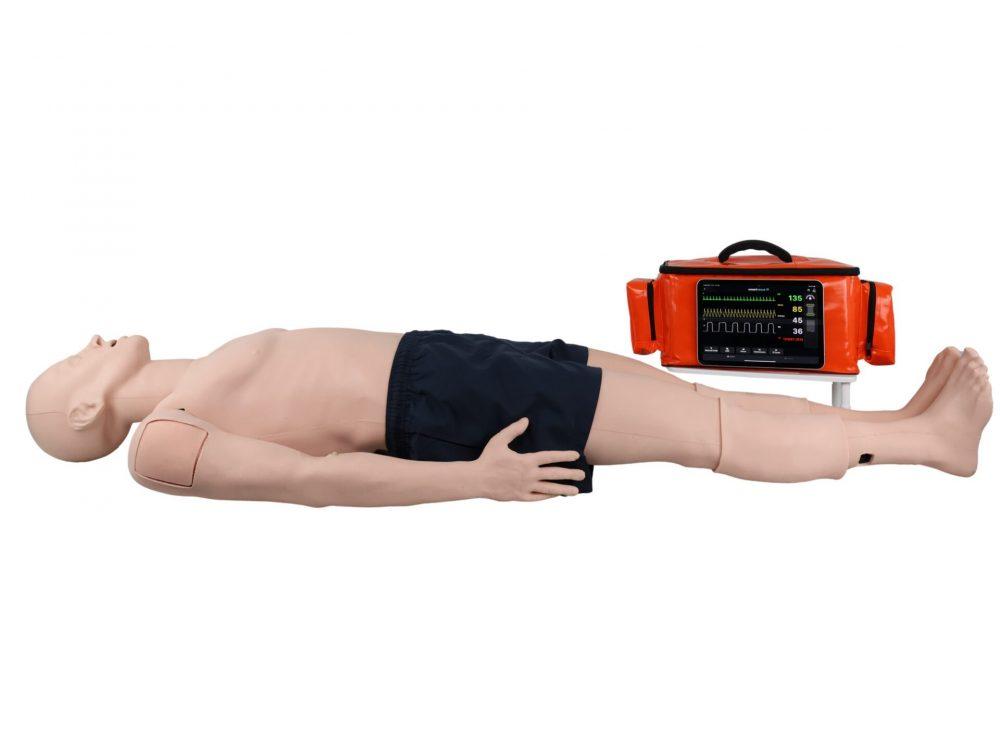

Smart TruALS Adult is a full-body ALS and ACLS simulator with integrated smart sensor technology, designed for intensive advanced life support training. Trainees can practise airway management, CPR with real-time feedback, needle decompression, intraosseous (IO) access, intravenous (IV) and intramuscular (IM) administration, with live performance data delivered wirelessly to the SmartRESUS app.

Featuring a comprehensive monitor bag, cardiac training tools, palpable carotid and femoral pulses, tongue oedema, visible lung isolation and anatomically correct landmarks, Smart TruALS Adult is the most advanced ALS and ACLS simulator for clinical and prehospital resuscitation training.

Knowledge

What you learn

Patient simulator modality. The competencies this equipment trains, in the language of the training plan.

  • Needle decompression of pneumothorax (2nd intercostal space midclavicular line and 4th/5th intercostal space anterior axillary line)
  • CPR with real-time feedback
  • Humeral and tibial intraosseous access with fluid flashback
  • 12-lead ECG placement and cardiac rhythm recognition
  • Defibrillation and AED use (simulated through the SmartRESUS app)
  • Cardiac pacing
  • IV and IM drug administration
  • Carotid and femoral pulse palpation
  • Identification of stomach distension
  • Oral and nasal intubation and bag-mask ventilation
  • LMA, supraglottic device, OPA and NPA insertion

Related procedures: Advanced life support · AED/SAED · Airway management · Basic life support

Knowledge

Cases and pathologies

The clinical scenarios that can be simulated with this equipment.

This simulator can represent:
  • Cardiorespiratory arrest in the adult
  • Tension pneumothorax requiring needle decompression
  • Difficult airway due to tongue oedema
Catalogue

Features and what's included

What the equipment does and what comes in the box, as described by the manufacturer.

Features

GENERAL:
  • Full-body advanced life support (ALS/ACLS) simulator with integrated smart sensors
  • Wireless streaming of performance data to the SmartRESUS app (Android and iOS)
  • Assembly in under 5 minutes; powered by mains adapter or power bank
  • Supports several trainees at once
  • Available in light and dark skin tones
  • 1-year warranty
FEEDBACK AND MONITORING:

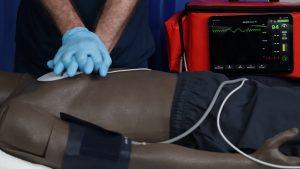

  • Live CPR dials: compression depth, rate, recoil and hand position
  • Live airflow volume bars for the left and right lungs
  • SmartResus Bag with 3-lead ECG, SpO2, blood pressure, ETCO2 and AED pads, plus a velcro tablet mount
  • Image library with chest X-ray, ultrasound and ECG results
ANATOMY AND FUNCTIONS:
  • Palpable carotid (left) and femoral (right) pulses with variable rate
  • Visible lung isolation and stomach distension
  • Tongue oedema activated by syringe
  • IO inserts with realistic fluid flashback
DURABILITY:
  • 80,000+ intubations, 250,000+ chest compressions and 3,000+ needle decompressions

Do not use a live or clinical defibrillator on the simulator: defibrillation is simulated through the SmartRESUS app.

Includes

  • 1 Smart TruALS Adult simulator (right and left arms, right and left legs and torso)
  • 1 SmartResus Bag with 3-lead ECG cable, 3 ECG pads, defibrillator pads, ETCO2 cable, SpO2 sensor, pressure cuff and velcro tablet patch
  • Humeral IO inserts: 1 fluid and 4 non-fluid per arm
  • Tibial IO inserts: 1 fluid and 4 non-fluid per leg
  • 2 arm IO skin pads and 1 IM skin pad
  • 2 leg IO wrap-around skins
  • 1 IV fluid management bag, 1 L
  • 1 pair of training shorts
  • 1 TruCorp lubricant, 100 mL
  • 1 USB to USB-C cable
  • 1 carry case
