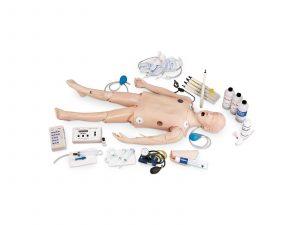

Deluxe CRiSis children's emergency manikin with ECG simulator

Patient simulator
Emergencies
Main product
Medicine

The deluxe CRiSis paediatric manikin offers the same components as the CRiSis paediatric manikin (art. no. R10154/1), plus a portable patient arrhythmia simulator. The arrhythmia/pacing simulator imitates 17 paediatric and 17 adult rhythms. The electronic takeover can be simulated with an external pacer. Cardioversion

Price on request

Available in Spain, Portugal and Andorra · delivery time given in the proposal

Download data sheet

Downloadable data sheet — features, specifications and delivery time, in PDF.

Need a technical report? Ask us for it and we'll send it within 24 h →

Catalogue

Description

What this equipment is and what it's designed for.

The deluxe CRiSis paediatric manikin offers the same components as the CRiSis paediatric manikin (art. no. R10154/1) and adds a portable patient arrhythmia simulator. The arrhythmia and pacing simulator reproduces 17 paediatric rhythms and 17 adult rhythms. Electrical capture can be simulated with an external pacemaker. Cardioversion can also be simulated with manual, semi-automatic or automatic defibrillation.
Features of the interactive ECG simulator:
– The defibrillation shock can be delivered from the manikin or from the simulator.
– Practise with your defibrillator or your external pacemaker without a manikin: connect them to the simulator with the adapters.
– An internal circuit allows pacing directly on the simulator and monitoring of the ECG rhythms through the PADS connector.
– Conversion function
– Select the rhythm that will be applied immediately after the defibrillator shock
– You can use any commercial defibrillator for pacing
– The battery-saving function switches the simulator off when it is not in use
Rhythms for pacing:
– Sinus bradycardia
– Junctional bradycardia
– Second-degree AV block type 1
– Second-degree AV block type 2
– Second-degree AV block type 2 with PVCs
– Third-degree AV block
17 adult and paediatric rhythms:
– Ventricular fibrillation
– Ventricular tachycardia (fast)
– Ventricular tachycardia (slow)
– Ventricular tachycardia (polymorphic)
– Atrial fibrillation
– Atrial flutter
– Supraventricular tachycardia
– Sinus tachycardia
– Sinus rhythm with PVCs
– Asystole
– Normal sinus rhythm
– Sinus bradycardia
– Junctional bradycardia
– Second-degree AV block type 1
– Second-degree AV block type 2
– Second-degree AV block type 2 with PVCs
– Third-degree AV block
– Obtaining realistic 3- or 4-lead ECGs
– The signal morphologies from the right arm, the left arm and the left leg give an exact representation of the QRS, P and T axes
The carry case for the CRiSis paediatric manikin is sold separately.
Size: 119 cm
Weight: 9.5 kg

Knowledge

What you learn

Patient simulator modality. The competencies this equipment trains, in the language of the training plan.

Paediatric CPR with compressions and ventilations
Jaw thrust and airway opening
Oral, nasal and digital intubation
Use of supraglottic devices
Manual, semi-automatic and automatic defibrillation
External pacing
Arrhythmia recognition
Femoral venous access and intravenous access in the arm
Intraosseous infusion
Blood pressure measurement by auscultation

Related procedures: Advanced life support · AED/SAED · Airway management · Basic life support · Intraosseous · TNG / Tracheotomy

Knowledge

Cases and pathologies

The clinical scenarios that can be simulated with this equipment.

This manikin can represent:

Paediatric cardiorespiratory arrest
Arrhythmias requiring defibrillation or cardioversion
Bradyarrhythmias requiring external pacing
Inadvertent oesophageal intubation

Catalogue

Features and what's included

What the equipment does and what comes in the box, as described by the manufacturer.

Features

GENERAL:

Manikin representing a 5-year-old child
It measures about 120 cm and weighs 9 kg
Brings together all the practice stations in a single manikin

AIRWAY:

Anatomically correct mouth, tongue, oropharynx, epiglottis, arytenoids, vocal cords, trachea and oesophagus
Fully articulated head, neck and jaw
Separate left and right lungs for auscultation
Inflatable stomach chamber as an indicator of oesophageal intubation
Accepts endotracheal, pharyngotracheal and oesophago-gastric intubation, oesophageal obturator, laryngeal mask, Combitube and King system

DEFIBRILLATION AND ECG:

Arrhythmia simulator with 17 adult rhythms and 17 child rhythms
Rhythm detected at 4 ECG sites and two defibrillation sites
Internal device that prevents shocks from being transmitted to the simulator
Compatible with the standard brands of defibrillators and monitors

FEMORAL AND INTRAOSSEOUS ACCESS:

Articulated leg that requires proper positioning
Palpable arterial pulse, palpable pubic symphysis and anterior superior iliac spine
Pressurised vein system with realistic flashback and replaceable injection pad
Intraosseous landmarks: patella, tibia and tibial tuberosity; replaceable bones and skin

IV ARM AND BLOOD PRESSURE:

Arm articulated at the biceps for antecubital and dorsal access, with replaceable skin and veins
Small-gauge tubing that simulates the size of children's veins
Blood pressure arm with palpable radial pulse, 5 Korotkoff sounds and auscultatory gap

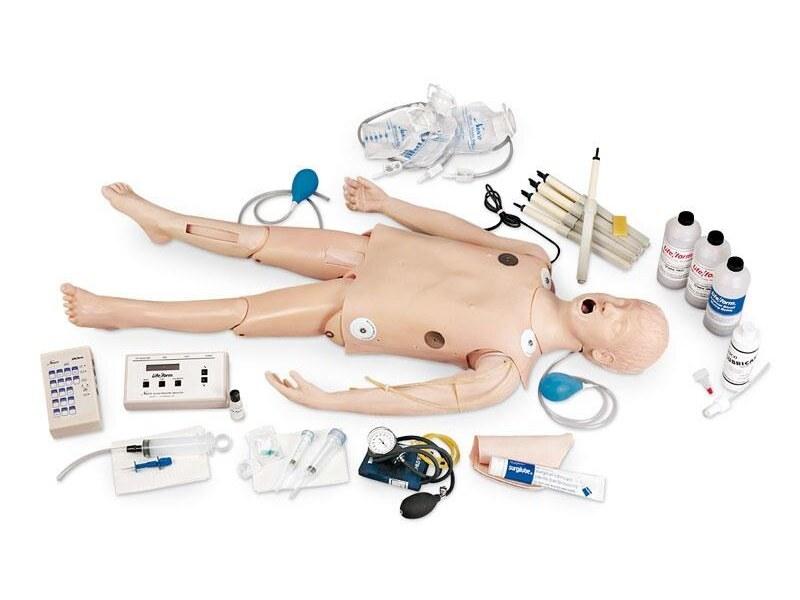

Includes

1 CRiSis Deluxe child manikin
1 Arrhythmia and ECG rhythm simulator

Catalogue

Modules

They extend what this equipment teaches. They are requested separately and are not included in the quotation by default.

CARRYING CASE (sold separately): carrying case for the manikin - Ref. LF03467U
SPEAKER SYSTEM (sold separately): projects the blood pressure sounds in the classroom - Ref. LF01189U

Catalogue

Consumables and spare parts

What this equipment will need next year.

10 Intraosseous Leg Bones Pack of 10 replacement leg bones for intraosseous access practice on the paediatric CRiSis™ Deluxe manikin with ECG simulator.

12383
2 Intraosseous Leg Skins Pack of 2 replacement periosteum inserts for intraosseous access practice on the paediatric CRiSis™ Deluxe manikin with ECG simulator.

12384
Artificial Blood, 1 litre Although not the same viscosity as real blood, simulation blood provides a sense of reality to any activity.

12362
Femoral Injection Pad An injection simulator for W44091 and W44126. The femoral injection pad is a great alternative to learning on real patients, allowing realistic and repeated injections.

12385
Fluid Supply Bag, 500 ml 500 ml bag for the simulated liquid system (blood or urine) of several manikins and arms.

12407
Venous Blood - Gallon Although not the same viscosity as real blood, simulation blood provides a sense of reality to any activity.

12405
