NEWBORN TORY - Advanced Full Term simulator - UNI

Patient simulator
Intensive Care Medicine
Main product
Medicine

TORY S2210 tetherless and wireless full-term neonatal simulator offers true-to-life physical and physiological attributes, wireless mobility, and ease-of-use designed to simulate lifelike clinical cases for every stage in neonatal care.

Price on request

Available in Spain, Portugal and Andorra · delivery time given in the proposal

Download data sheet

Downloadable data sheet — features, specifications and delivery time, in PDF.

Need a technical report? Ask us for it and we'll send it within 24 h →

Catalogue

Description

What this equipment is and what it's designed for.

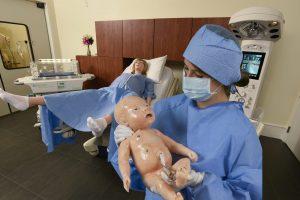

Newborn TORY® offers true-to-life physical and physiological attributes, wireless mobility, and ease-of-use designed to simulate lifelike clinical cases for every stage in neonatal care. Whether training in a simulation center, in-situ, or in transit, TORY brings neonatal simulation closer to real-life than ever before.

It looks and feels like a real term newborn with its soft and supple skin, lifelike vitals, and realistic articulation. The perfect combination of features for APGAR evaluation and physical examination scenarios.

Knowledge

What you learn

Patient simulator modality. The competencies this equipment trains, in the language of the training plan.

Resuscitation training (eCPR)
Airway management
Naso and orotracheal intubation
BVM ventilation
NG/OG tube placement
Needle decompression and Chest tube insertion
ECG monitoring
Blood pressure measuring
SpO2 and EtCO2 monitoring
Cyanosis management
Defibrillation and cardioversion
IV cannulation: bolus, infusion and sampling
Intraosseous infusion
Urinary catheterization
Umbilical catheterization
Auscultation of bowel and cardiac sounds
Abdominal distension detection

Related procedures: Advanced life support · Airway management

Knowledge

Cases and pathologies

The clinical scenarios that can be simulated with this equipment.

UNI WIRELESS INTERFACE - PRE-INSTALLED SCENARIOS:

The new TORY® Neonatal Care Simulation Learning Experiences (SLEs) provide you with a library of ready-to-use, evidence-based scenarios designed to help you maximize participant’s learning through outcome-focused simulated clinical patient encounters.
- Acute Respiratory Distress Syndrome
- Bronchopulmonary Dysplasia with Pulmonary Hypertension
- Drug-Exposed Infant/Neonatal Abstinence Syndrome
- Early-Onset Sepsis
- Late-Onset Sepsis
- Nuchal Cord
- Pneumonia
- Shoulder Dystocia

Catalogue

Features and what's included

What the equipment does and what comes in the box, as described by the manufacturer.

Features

PRODUCT FEATURES:

Age: 40-week term newborn
Weight: 6 lbs. / 2.7 kg
Length: 20.75 in / 52.7 cm
Smooth and supple full-body skin
Seamless trunk and limb joints
Realistic joint articulation: neck, shoulder, elbow, hip, and knee
Forearm pronation and supination
Lifelike umbilicus
Palpable landmarks, including ribs and xiphoid process
Tetherless and fully responsive even while being transported for team training
Internal rechargeable battery provides up to 4 hrs. of tetherless operation
Pneumatic and fluid reservoirs are housed inside the body
NOELLE® Fetus-Newborn wireless link capability
Head tilt, chin lift, jaw thrust
Realistic orotracheal and nasotracheal airway and visible vocal cords
Bag-valve-mask ventilation
Neck hyperextension and airway obstruction with event capture and logging
Intubation depth detection and logging
Programmable crying/grunting sounds
ETT, SGA, fibreoptic intubation
Spontaneous breathing
Real end-tidal CO 2 capability
Variable respiratory rates and inspiratory/expiratory ratios
Visible chest rise with bag valve mask ventilation
Unilateral chest rise with right mainstem intubation
Lung ventilations are measured and logged
Programmable unilateral chest rise and fall
Unilateral lung sounds synchronized with respiratory rate
Comprehensive ECG rhythm library
ECG monitoring using real devices
Real-time CPR performance monitor and trainer
Effective chest compressions generate palpable pulses and CPR activity
Healthy and abnormal heart sounds
Virtual pacing and defibrillation
Visible central cyanosis with programmable intensity
Fontanelle, brachial, and umbilical pulses
Blood pressure-dependent pulses
Measure blood pressure using real modified BP cuff
Pre-ductal and post-ductal O 2 saturation values simulated on patient monitor
Arterial/venous umbilical catheterisation
Bilateral IV arms
IV access on the lower left leg
Umbilical vein and arteries support catheterisation and infusion
Umbilical cutdown
Intraosseous access and infusion at right tibia
Bilateral anterolateral thigh intramuscular injection sites
Interchangeable female and male genitalia
Urinary catheterisation with urine output
Selectable bowel sounds
Seizures/Convulsions
1-month neonate navel insert
Programmable muscle tone: bilateral or unilateral arm movement, reduced, and limp
Temperature sensor placement detection
Unified software for all simulators in the range - Interface design and controls are shared across the entire line of computer-controlled simulators
Create your own scenarios –add/edit
Includes 13 pre-programmed scenarios
Real-Time CPR Feedback – Monitor rate and compression depth, no-flow time, rate, and excessive ventilation; smart trainer features vocal cues and outputs performance report
Generate and share simulated diagnostic lab results
Interactive questionnaire form designer
Track team and individual provider actions
Time-stamped event recording and reporting
No annual license fee

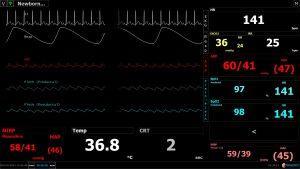

Interactive virtual patient monitor displays vital signs in real-time
Display up to 18 numeric values, including HR, ABP, NIBP, NIBP Leg, SpO 2 , SpO 2 PD, RR, EtCO 2 , CVP, PAP, CCO, SvCO 2 , temp
Display up to 20 dynamic waveforms, including ECG, Lead I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6, AVP, CVP, PAWP, pulse, CCO, SvO 2 , respiration, and more
Customizable layout mimics real patient monitors
Customizable threshold alarms
Display simulated ultrasounds, CT scans, lab results, X-rays
20” touchscreen monitor and 12” portable tablet configurations available
No annual license fee

Includes

1 TORY Simulator
1 UNI tablet PC (simulation controller)
8 Preloaded Scenarios
5 IO tibial replacements
1 RF communication modules
1 IV filling kit
1 BP cuff
1 Battery charger
1 Receiving blanket
1 Soft carrying case
1 Instructions manual

Catalogue

Modules

They extend what this equipment teaches. They are requested separately and are not included in the quotation by default.

BEDSIDE GAUMARD VITALS PATIENT MONITOR (option):

It simulates the functionality and look of a real patient monitor, allowing participants to practice data interpretation, documentation, and clinical decision-making skills.
- Customizable interface can mimic the look of various real patient monitor brands
- 20+ Dynamic scalars and waveforms including HR, ABP, SpO2, RR, EtCO2, temperature, time, and more
- Customizable alarms for vital sign parameter high/low threshold
- Virtual 12-Lead ECG Monitoring
- Data histogram
- Built-in virtual defibrillator and pacer
- Wireless data communication
