Reference 10824 · Task trainer
Advanced Full Functional Neonatal Nursing and CPR Manikin
- Task trainer
- Emergencies
- Main product
- Medicine

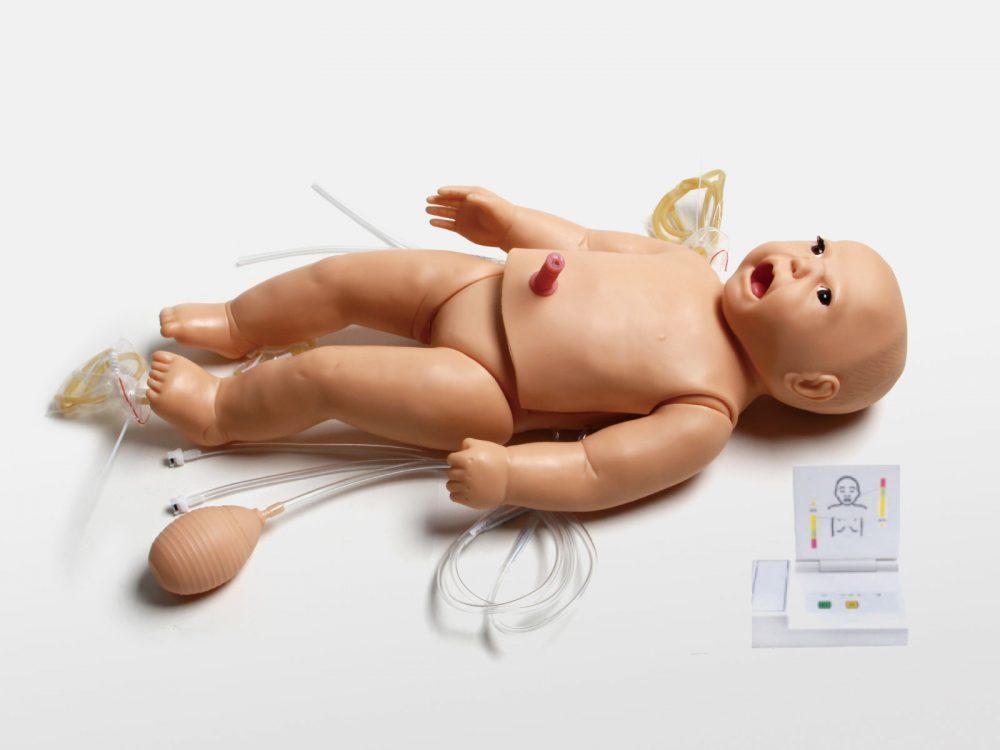

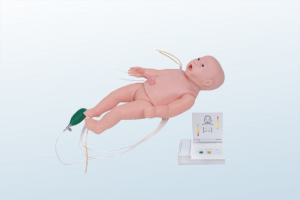

The model is designed based on the anatomical characteristics of newborns. It feels realistic, with flexible joints, and can be used for various nursing procedures.
Price on request
Available in Spain, Portugal and Andorra · delivery time given in the proposal
Downloadable data sheet — features, specifications and delivery time, in PDF.
Need a technical report? Ask us for it and we'll send it within 24 h →
Description
What this equipment is and what it's designed for.
Product No.: PC-PEE004
Overview
The model is designed based on the anatomical characteristics of newborns. It feels realistic, with flexible joints, and can be used for various nursing procedures.
Anatomy
Intravenous infusion/puncture: Arm veins include: brachiocephalic vein and superficial vein on the back of hand. Scalp veins include: superior frontal vein and superficial temporal vein. Main venous trunk of lower limbs: femoral vein;
Umbilical cord care: Umbilical cord ligation and cutting, umbilical vein infusion can be performed.
Realism
Bone marrow puncture: It can be punctured through the tibia, with simulated bone marrow outflow, and drugs or infusions can be injected;
CPR operation training: supports multiple ventilation methods such as mouth-to-mouth, mouth-to-nose, simple respirator-to-mouth, etc., electronically monitors blow count, blow volume, compression count, and compression depth; real-time data display.
Gastric tube: supports auscultation to detect the position of the tube, used for gastrointestinal decompression, nasogastric feeding, gastric lavage etc.
Clean
Clean the simulator with a damp cloth, using warm water and neutral detergent. Do not use any abrasive cleaning agents or materials.
Allow trainer to completely dry before storing.
Keep away from sunshine.
|
Package(kg) |
7.8 |
||
|
Dimension(cm) L x W x D |
64 |
37 |
25 |
What you learn
Task trainer modality. The competencies this equipment trains, in the language of the training plan.
- Cannulate the veins of the arm, the back of the hand, the scalp and the femoral vein.
- Clamp and cut the cord and infuse by the umbilical venous route.
- Perform tibial intraosseous puncture and give drugs or fluids.
- Ventilate mouth to mouth, mouth to nose and with a self-inflating bag, controlling volume and number of breaths.
- Check the position of the gastric tube by auscultation and perform gastric lavage.
Related procedures: Basic life support · Intraosseous · Umbilical catheterisation
Cases and pathologies
The clinical scenarios that can be simulated with this equipment.
- Neonatal cardiac arrest.
- Difficult vascular access with an indication for the intraosseous route.
- Gastrointestinal decompression and tube feeding.
- Umbilical cord care.
Features and what's included
What the equipment does and what comes in the box, as described by the manufacturer.
Features
- Full-body neonatal manikin with realistic feel and flexible joints.
- Venous access: brachiocephalic, back of the hand, superior frontal, superficial temporal and femoral.
- Intraosseous puncture through the tibia with simulated bone marrow flow.
- Electronic monitoring of breaths, volume, number of compressions and depth, with real-time data.
- Packed weight 7.8 kg and dimensions 64 x 37 x 25 cm.
Services for this equipment
Services matter: the equipment gets commissioned, the staff know how to use it and maintenance is settled before you start. Include them in your budget and avoid having to raise a second purchase.
- Preventive maintenance We'll let you know when it's due
Documentation
You can download it now or we'll send it on request.
