Arterial and venous training arm with interchangeable inserts that allow creation of arteriovenous (AV) fistulas, placement of AV grafts, hemodialysis exercises, incision and suture training, blood draw, infusion, intramuscular injections, etc.

Price on request

Available in Spain, Portugal and Andorra · delivery time given in the proposal

Download data sheet

Downloadable data sheet — features, specifications and delivery time, in PDF.

Need a technical report? Ask us for it and we'll send it within 24 h →

Catalogue

Description

What this equipment is and what it's designed for.

S.M.A.S.H. Advanced Patient IV Training arm was first introduced in 1986 for training, teaching and practice of technique. The latest improvement to this “world class” standard offers realism in a sleek design.

A micropump mounted within the simulator’s shoulder delivers automatically generated arterial pulses at the radial and brachial sites and controls arterial blood flow by allowing variable heart rate and pulse strength. Interchangeable arterial and venous inserts within the forearm allow creation of arteriovenous (AV) fistulas and placement of AV grafts, while a simulated healed fistula insert provides a platform on which hemodialysis exercises can be performed. An additional multi-layer insert in the bicep area can be used for incision and suture training exercises.

Knowledge

What you learn

Task trainer modality. The competencies this equipment trains, in the language of the training plan.

IV training exercises
Venipuncture training
Blood draw exercises
AV Anastomosis
Placement of AV grafts
Subcutaneous injections
Intramuscular injections
Infusion exercises
Incision practice and suturing exercises
Hemodialysis exercises with a healed fistula
Palpation of radial pulses
Detection of collapsed or bulging vessels
Professional-to-patient communication

Related procedures: Dialysis · Injection and infusion · Intramuscular · Intravenous · Patient care · Subcutaneous

Knowledge

Cases and pathologies

The clinical scenarios that can be simulated with this equipment.

This arm allows situations of vascular access and of haemodialysis to be worked on:

Native arteriovenous fistula
Arteriovenous graft
Puncture of a mature fistula for haemodialysis
Patient requiring radial or brachial arterial access
Wound of the arm requiring incision and suturing

Catalogue

Features and what's included

What the equipment does and what comes in the box, as described by the manufacturer.

Features

VERSATILITY:

Subcutaneous injection sites on the volar forearm and lateral upper arm
IntraMuscular injection site on the upper arm
Suture and incision sites on both the upper arm and forearm
Hemodialysis site on the forearm
Arterial and Venous insert for IV training, venipuncture practice, blood draw exercises, AV anastomosis, and placement of AV grafts. This multi-layer surgical insert includes the skin, subcutaneous tissue, muscle, radial artery, and radial vein

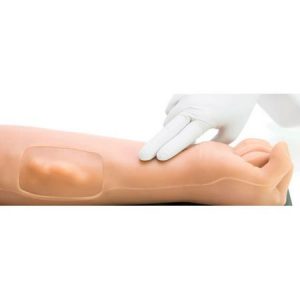

AV fistula insert that simulates a healed fistula for hemodialysis exercises.
Multi-layer bicep insert that includes the skin, subcutaneous tissue, and muscle and allows incision practice and suturing exercises

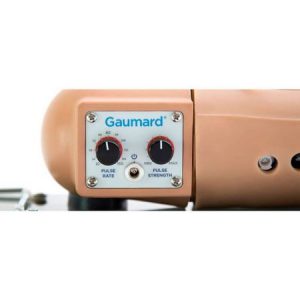

Adjustable heart rate and pulse strength simulating a heart rate from 10 BPM to 150BPM
Cephalic (antecubital), Basilic, Radial, and Ulnar veins as well as the radial and brachial arteries for infusion and blood draw training
Varying vessel palpability to simulate collapsed or bulging vessels

ANATOMY:

Durable skin that can be pierced in excess of 200 times with a 20 or 22 gauge needle
Realistic tactile feedback for both surgical and arterial & venous stick exercises
Arterial system including the radial and brachial arteries
Rotating arm allowing dorsal and volar access along the length of the IV training arm.
New proprietary materials replicate of skin, subcutaneous, and muscle layers at all surgical sites.
Upgraded inserts, skins, and vessels for improved tactile feedback

USER-FRIENDLY:

Micropump embedded within the shoulder generates variable heart rates and pulse strength. Quiet and compact, thereby improving portability of the unit.
Easy to replace plug-and-play inserts to allow quick change-out between procedures

SAFETY:

Latex-free vessels with improved access for hassle-free replacement
Easy to clean, service and maintain

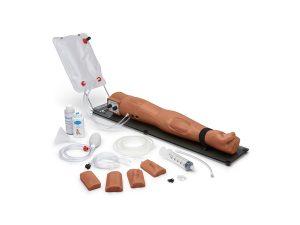

Includes

1 Advanced IV training arm
2 Bicep Incision and suture insert
2 Arterial and venous insert
2 Fistula insert
1 Squeeze bulb with 2.5ft line
1 Smoked Lucite Base with stand for blood bag
1 Dispensing bag with 2 outlets
1 Vein filling kit
1 Stopper
1 Click valve
1 Synthetic blood concentrate
1 Replacement Vein Set (10ft Non-latex tubing, 4 Vein quick connector and 10 Vein O-ring)
1 Talcum powder
1 Funnel
2 Hex L-key
1 Power supply AC adapter
1 Carrying bag
1 Instruction manual
