Central Venous Catheterization Ultrasound Training Model

Task trainer
Anaesthesiology
Main product
Medicine

Price on request

Available in Spain, Portugal and Andorra · delivery time given in the proposal

Download data sheet

Downloadable data sheet — features, specifications and delivery time, in PDF.

Need a technical report? Ask us for it and we'll send it within 24 h →

Catalogue

Description

What this equipment is and what it's designed for.

Outline

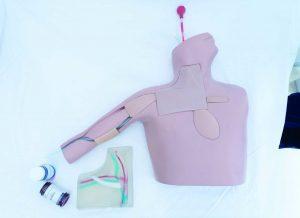

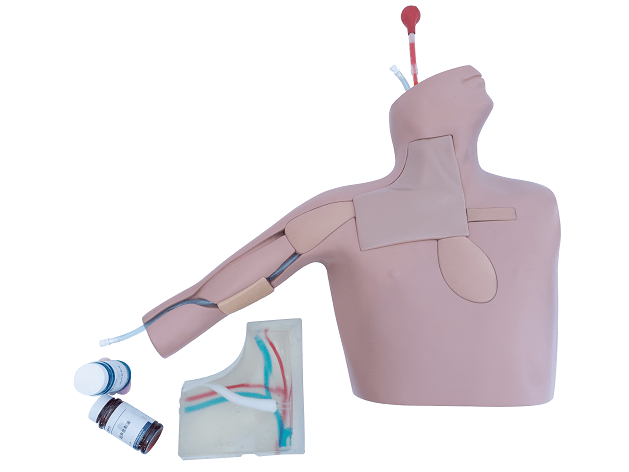

It is a model from the earlobe plane to the umbilical plane with its head turned to one side. It’s put in a standard central venipucture and catheterization position, including landmarks such as right arm, clavicle, ribs, sternocleidomastoid muscle, sternoclavicular joint, etc. It can be used for ultrasound-guided subclavian vein and internal jugular vein puncture and catheterization. The model’s arm can be used for ultrasound-guided PICC catheter placement.

Skills Gained

Subclavian vein puncture and catheterization
Internal jugular vein puncture and catheterization
PICC catheter placement

Features

· Anatomy

Right internal jugular vein, right common carotid artery, superior vena cava, right brachiocephalic vein, right brachiocephalic trunk, right subclavian vein, right subclavian artery, etc.

· Key Features

The module for central venous catheterization is transparent, allowing users to clearly see the course and adjacent relationship of blood vessels
The puncture module supports using a clinical real ultrasound machine to observe clear images such as right internal jugular vein, right common carotid artery, superior vena cava, right brachiocephalic vein, right brachiocephalic trunk, right subclavian vein, right subclavian artery, etc.
The puncture pad at the arm is made of high-molecular ultrasound material, close to real skin. It can support the use of real ultrasound machines, and the images of tissue structures (skin, subcutaneous tissue, blood vessels) under ultrasound are clear and real
A sense of “pop” can be felt when the vascular puncture is successful, and the outflow of venous blood can be simulated
The guide wire’s march can be observed under the guidance of ultrasound, and also whether the catheter is placed correctly can be detected
All the puncture modules are replaceable

Specifications

Gross weight (kg): 9.1 4.6
Product size(mm): 700×500×160

Knowledge

What you learn

Task trainer modality. The competencies this equipment trains, in the language of the training plan.

Identificar la clavícula, las costillas, el esternocleidomastoideo y la articulación esternoclavicular.
Puncionar y cateterizar la vena subclavia bajo control ecográfico.
Puncionar y cateterizar la vena yugular interna bajo control ecográfico.
Colocar un catéter PICC por el brazo.
Comprobar el avance de la guía metálica y la posición final del catéter.

Related procedures: Cannulation · Central venous catheterisation (CVC) · Intravenous · Ultrasound

Knowledge

Cases and pathologies

The clinical scenarios that can be simulated with this equipment.

Acceso venoso central en el paciente crítico.
Punción arterial accidental durante la canalización.
Nutrición parenteral y tratamiento prolongado por vía central.

Catalogue

Features and what's included

What the equipment does and what comes in the box, as described by the manufacturer.

Features

Abarca desde el plano del lóbulo de la oreja hasta el plano umbilical, con la cabeza girada.
Módulo de cateterización transparente: se ve el trayecto de los vasos y su relación con las estructuras vecinas.
Almohadilla del brazo de material ecogénico de alto polímero, próxima a la piel real.
Sensación de pop al lograr la punción, con salida de sangre venosa simulada.
Todos los módulos de punción son reemplazables.
