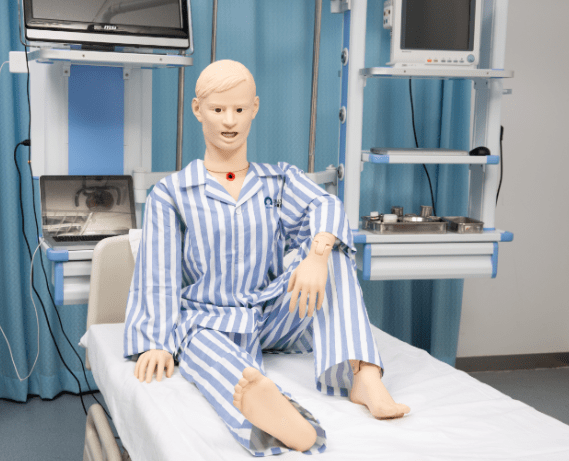

All-purpose Patient Care Simulator

Reference 11413 · Patient simulator

All-purpose Patient Care Simulator

Patient simulator
General Medicine
Main product
Nursing

This simulator is designed to meet teaching requirement for all the basic nursing skills. The joints are flexible for movement, which allow various postures of the simulator.

Price on request

Available in Spain, Portugal and Andorra · delivery time given in the proposal

Download data sheet

Downloadable data sheet — features, specifications and delivery time, in PDF.

Need a technical report? Ask us for it and we'll send it within 24 h →

Catalogue

Description

What this equipment is and what it's designed for.

Outline

This simulator is designed to meet teaching requirement for all the basic nursing skills. The joints are flexible for movement, which allow various postures of the simulator.

Skills Gained

Pupils observation and demonstration
Face & hair cleaning and care
Oral care skills training
Tracheal tube insertion
Oral and nasal intubation for lavage/gavage
Oral, nasal, and tracheal suctioning
Oxygen inhalation
Postoperative care of tracheotomy
Heart sound, respiratory sound, and bowel sound auscultation
Blood pressure measurement
Venipuncture arm for relative operation skills training, realistic breakthrough feeling and return of blood
Intramuscular injection
Postoperative care of ileostomy and colostomy
Interchangeable male and female genitalia with lifelike look and feel – soft male genitalia can be lifted to 60 degrees (to the abdominal wall). Durable material allows tearing and stretching, and can be repeatedly used. Realistic female genitalia, labium minus can be split to show clitoris, urethral orifice, and vaginal orifice
Wearable bedsore care module: Wound cleaning, classification, evaluation, length measurement
Various positions; easy to move; care of corpse
Local care: hand & foot, perineum
Holistic nursing care: sponge bath, change of gowns, cold and heat therapy
Catheterization

Features

· Key Features

Flexible joints allow different positions
Replaceable skin and vessel
The puncture needle can be firmly fixed with infusion stick
The Manikin’s Articulations Include:

Trunk – rotation (forward & backward), flexion and extension

Neck —rotation (forward & backward), flexion and extension

Shoulder – abduction, adduction, rotation (medial & lateral), flexion and extension

Elbow — rotation (medial & lateral), flexion and extension

Wrist —flexion and extension, abduction, adduction, rotation (medial & lateral)

Hip — abduction, adduction, rotation (medial & lateral), flexion and extension

Knee —flexion and extension, rotation (medial & lateral)

Ankle —dorsiflexion, plantar flexion, abduction, adduction, rotation (medial & lateral)

· Two standardized modules (both can be used with other products)

BPSim Module

Non-invasive blood pressure can be measured with real BP monitor; stethoscope included
Korotkoff sound
Pressure value is displayed through dynamic mmHg, value can be precisely set to 1mmHg
Systolic blood pressure, diastolic blood pressure, volume and pulse rate can be set. Adjustable range: 0-300mmHg
Systolic & diastolic pressure, volume and heart rate can be displayed on the LED screen simultaneously
Automatic calibration, low power consumption. The system will shut down after 10 mins of non-operation. Battery can be used for at least 1 semester (4-5 months)

AUDSim Module

54 normal and abnormal heart sounds (14), breath sounds (13) and bowel sounds (6), as well as patient’s voice (21) for selection
User-friendly interface, easy to operate
5 different kinds of sounds can be played at the same time and at any combination with corresponding status showing on the screen
Multi-language interface (Chinese and English)
Earphone can be used for self-study. Teacher can use sound box to broadcast sounds to demonstrate. There is also a speaker inside the simulator
5V DC power supply

Specifications

Gross weight (kg): 20.4
Packing size (cm): 92.5 x 55.5 x 25.5
Product size(mm): 1400×330×180

Knowledge

What you learn

Patient simulator modality. The competencies this equipment trains, in the language of the training plan.

Realizar los cuidados faciales, la higiene bucal y el baño en cama.
Insertar tubo traqueal, aspirar por vía oral, nasal y traqueal y aplicar oxigenoterapia.
Alimentar y lavar el estómago por sonda oral y nasal.
Auscultar ruidos cardíacos, respiratorios e intestinales y medir la presión arterial.
Puncionar venas, inyectar por vía intramuscular y sondar la vejiga.
Limpiar, clasificar, valorar y medir una úlcera por presión.

Related procedures: Patient care

Knowledge

Cases and pathologies

The clinical scenarios that can be simulated with this equipment.

Úlceras por presión en distintos estadios.
Paciente con ileostomía o colostomía en el posoperatorio.
Paciente traqueostomizado en el posoperatorio.
54 ruidos normales y patológicos: cardíacos, respiratorios, intestinales y voz del paciente.
Alteraciones de la presión arterial en el rango de 0 a 300 mmHg.
Amortajamiento y cuidados al final de la vida.

Catalogue

Features and what's included

What the equipment does and what comes in the box, as described by the manufacturer.

Features

Articulaciones completas de tronco, cuello, hombro, codo, muñeca, cadera, rodilla y tobillo, con flexión, extensión y rotación.
Genitales masculinos y femeninos intercambiables, de aspecto y tacto naturales.
Brazo de punción venosa con sensación realista de perforación y retorno de sangre; piel y vasos sustituibles.
Módulo BPSim: presión arterial medida con tensiómetro real, ruidos de Korotkoff y valores configurables con precisión de 1 mmHg.
Módulo AUDSim: 54 sonidos, hasta 5 reproducibles a la vez, interfaz en chino e inglés y salida por auriculares o altavoz.
Los dos módulos son normalizados y se pueden usar con otros productos.

Includes

Simulador multifuncional de cuidados del paciente.
Genitales masculinos y femeninos intercambiables.
Módulo vestible de cuidado de úlceras por presión.
Módulo BPSim de presión arterial, con fonendoscopio.
Módulo AUDSim de auscultación.

Technical

Services for this equipment

Services matter: the equipment gets commissioned, the staff know how to use it and maintenance is settled before you start. Include them in your budget and avoid having to raise a second purchase.
