Adult Head (Static) for X-Ray CT, US, MRI

Task trainer
Nervous system
Main product
Medicine

The Adult Head (Static) Phantom is specifically designed for medical imaging of foreign static objects like bone fragments, shrapnel, and bullets. It mimics the average anatomy of a male head using soft and hard tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT scans.

Price on request

Available in Spain, Portugal and Andorra · delivery time given in the proposal

Download data sheet

Downloadable data sheet — features, specifications and delivery time, in PDF.

Need a technical report? Ask us for it and we'll send it within 24 h →

Catalogue

Description

What this equipment is and what it's designed for.

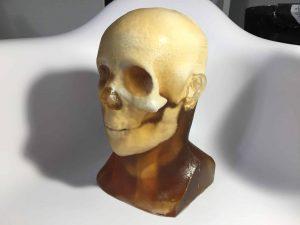

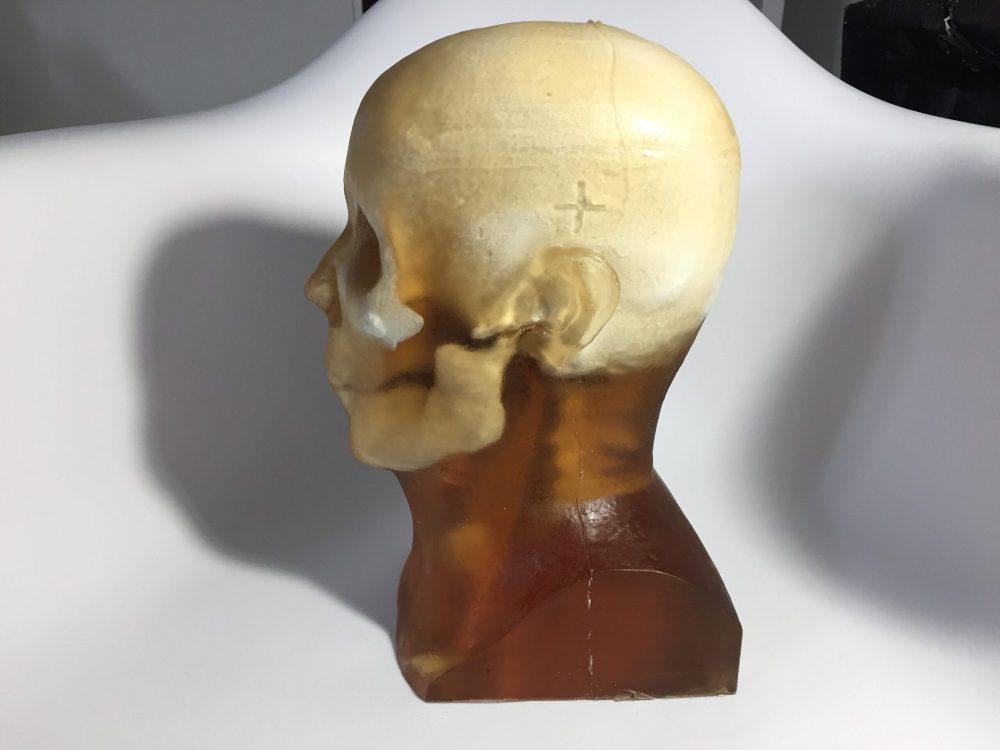

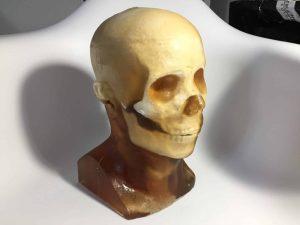

The Adult Head Phantom (Static) is designed for medical imaging of foreign static objects such as small bone fragments, shrapnel, bullets, and other metal or non-metal targets. Modeled on an average human male head, the phantom is constructed from realistic soft and hard tissue-mimicking materials that are compatible with Ultrasound, MRI, and X-Ray/CT applications. The materials used to build our phantoms mimic the biomechanical, acoustical, and physical properties of human tissue.

The materials used in this head phantom are engineered for long-term stability , ensuring they do not dry out or degrade over time. The skull bone is cast out of our realistic patented epoxy-based bone material and features a realistic three-layered structure, including an inner diploe layer, closely mimicking human anatomy.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

If you have specific requirements for your applications, please contact us at info@www.truephantom.com, and we will help you find the best solution.

Note: The size and quantity of the static objects can be customized based on your requirements.

For more imaging quality references, please see our Radiographs page.

All standard phantoms are coated with a protective layer of the harder urethane rubber to offer enhanced appearance and safeguard the phantom from any scratches when handled without care. This coated layer also provides a glossy finish and slightly changes the hardness of the phantom. The Hardness [Shore 00] for the ‘Body Tissue’ mentioned above is measured without the coat layer. The coat will increase the hardness by approximately 30 points meaning that if the body tissue hardness is OO 60, the coated body tissue will be OO 90.

Knowledge

What you learn

Task trainer modality. The competencies this equipment trains, in the language of the training plan.

Check positioning symmetry before accepting the image.
Position and centre the specimen for each projection or slice plane.
Choose the radiographic technique and check its effect on the image.
Adjust the CT protocol and assess the result on the reconstructions.
Orient the probe and recognise the structures in each ultrasound plane.
Try out MRI sequences and compare the contrast between tissues.

Related procedures: MRI · Tomography · Ultrasound · X-ray

Knowledge

Cases and pathologies

The clinical scenarios that can be simulated with this equipment.

Emergency head CT and head protocols.
Head positioning and symmetry control.
Testing of head MRI sequences.
Acceptance testing of a unit or validation of a new protocol.
Training radiographers and residents without exposing any patient.

Catalogue

Features and what's included

What the equipment does and what comes in the box, as described by the manufacturer.

Features

Imaging response equivalent to human tissue in X-ray, CT, ultrasound and MRI.
Differentiated internal anatomy, not a homogeneous block.
No ferromagnetic components: it can enter the MRI room.
Takes direct probe contact with gel.
It can be scanned as often as needed and exposes nobody to radiation.

Includes

User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Weight: 17 Lbs (approx.)
Size: 23 x 14 x 10 Inches
